Strip LED Profile

With years of experience in production LED aluminum profile, JE can supply a wide range of LED aluminum profile with very high quality. This strip LED profile is the thinnest aluminum profile of our company, with a height of only 7.78mm, which is very convenient for engineering decoration. The embedded assembly method makes the appearance both beautiful and generous. It is made of high-quality 6063 aluminum alloy, which is very conducive to the heat dissipation of the LED strips, thereby prolonging the life of the LED strips. Using high-quality PC raw materials with UV resistance, the diffusion effect of light is very good.

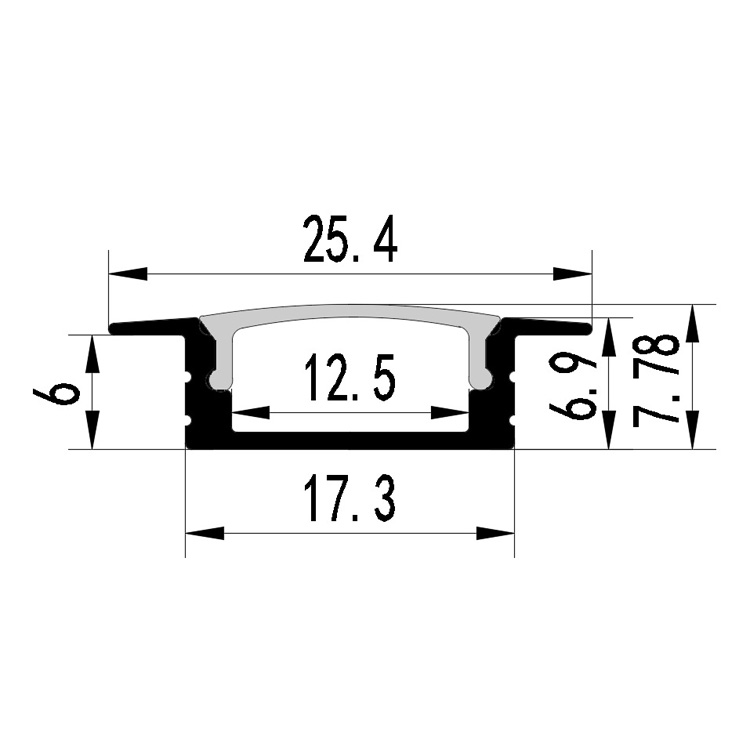

Strip LED Profile Parameter (Specification)

LengthCustom lengths available
Width25.4mm
Height7.78mm
Max strip width12mm
LED Aluminum profile6063 aluminum alloy
LED Aluminum profile colorSilver color
LED plastic profile (Diffuser )Polycarbonate
LED plastic profile (Diffuser )colorFrosted, semi-clear and Clear(transparent)
MountedRecessed Mounted
ClipsStainless steel
End capsPlastic

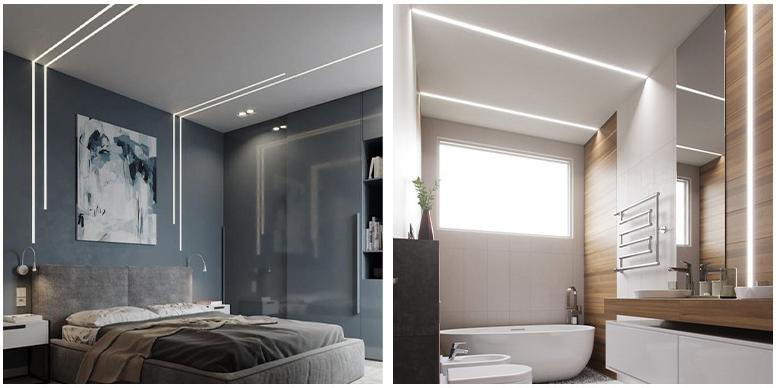

Strip LED Profile Feature And Application

This strip LED profile are widely used for various lighting decorations to meet customers' requirements for the appearance of some special projects, such as linear decoration, cabinet decoration, interior wall decoration, etc.

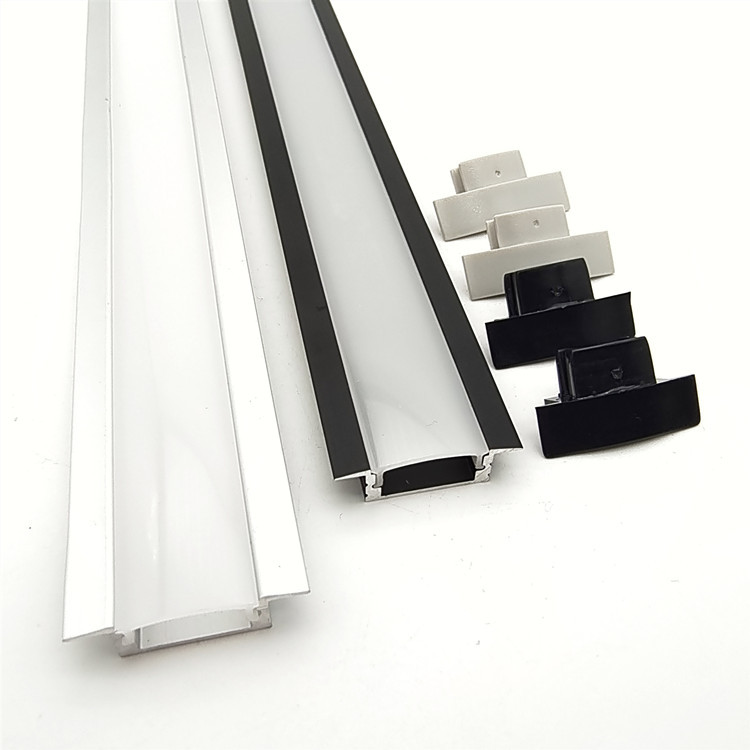

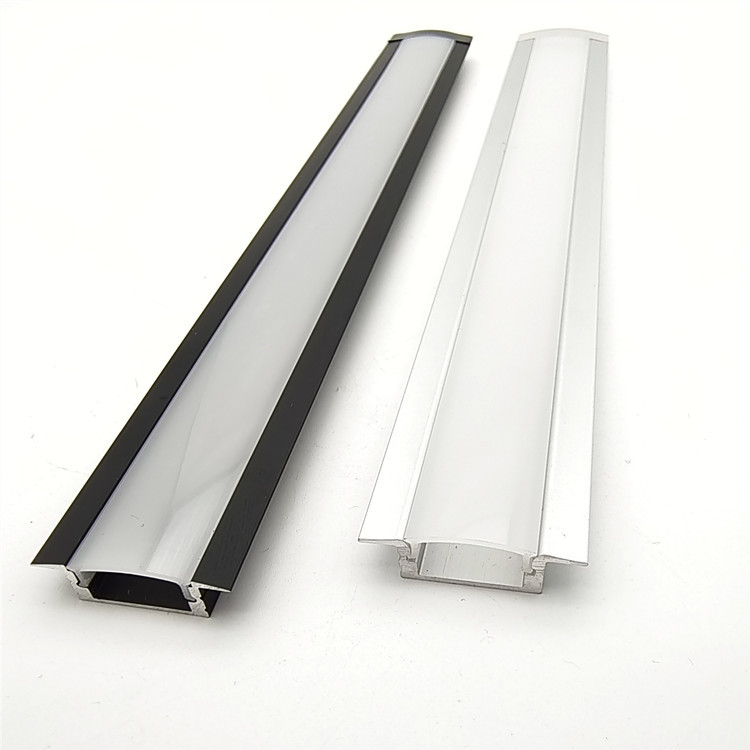

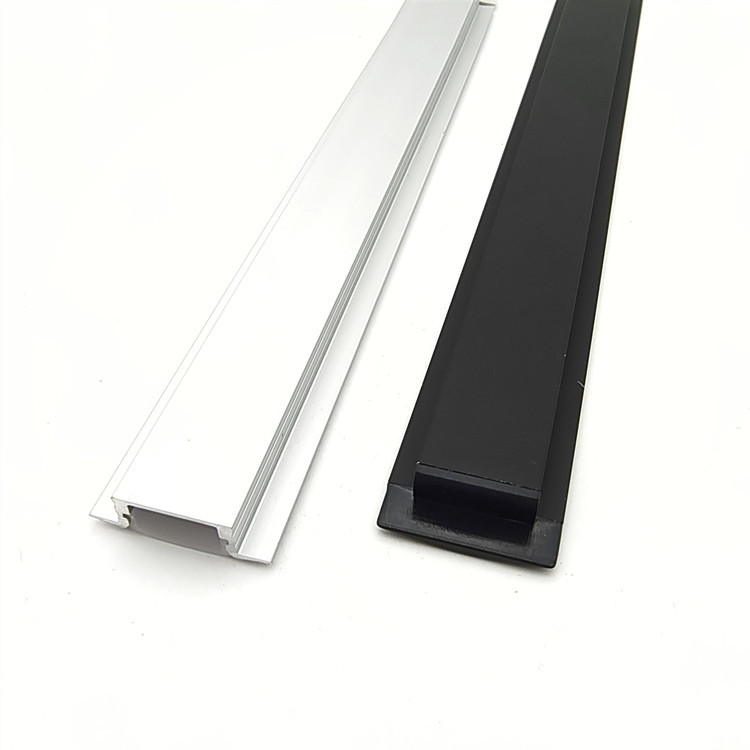

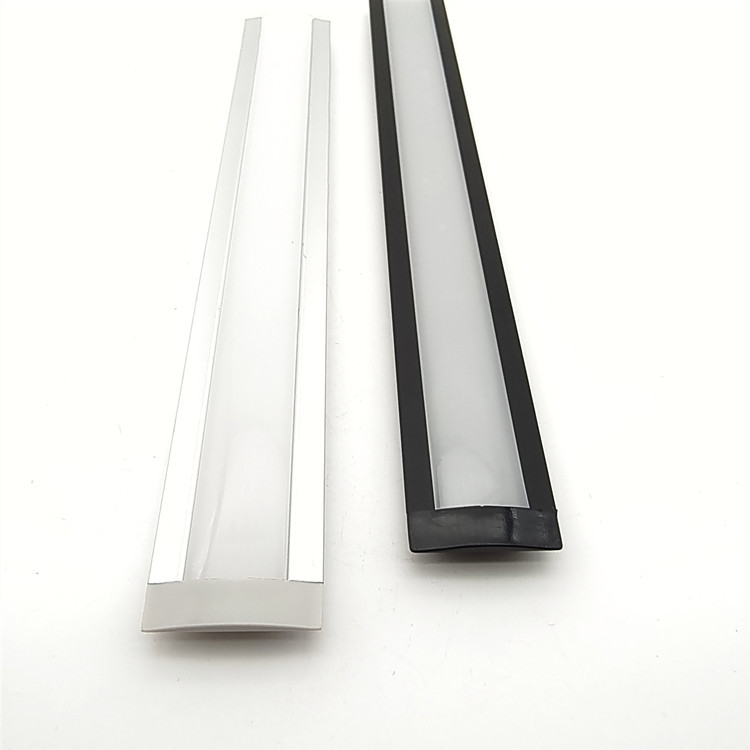

Strip LED Profile Details

More details of this strip LED profile below:

Strip LED Profile Qualification

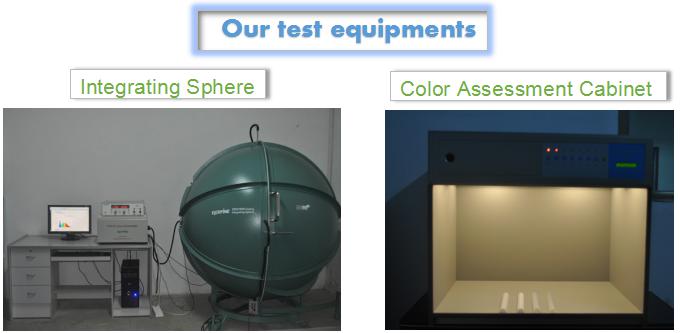

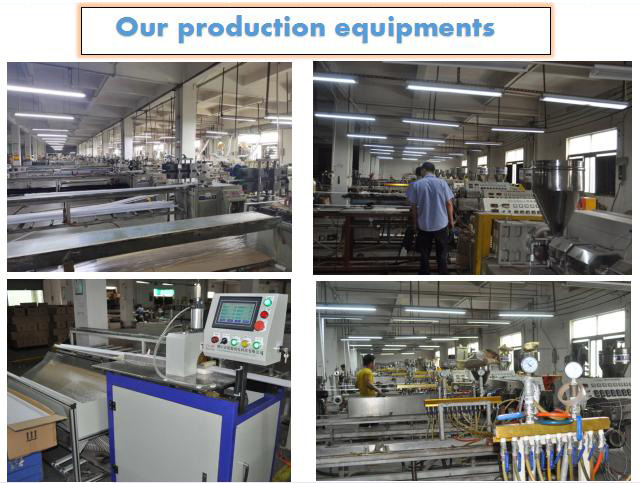

As a LED Aluminum Profile and LED plastic profile professional manufacturer, JE have 20 plastic extrusion machines and 5 aluminum extrusion machines, have a professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers, has a professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades. JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.

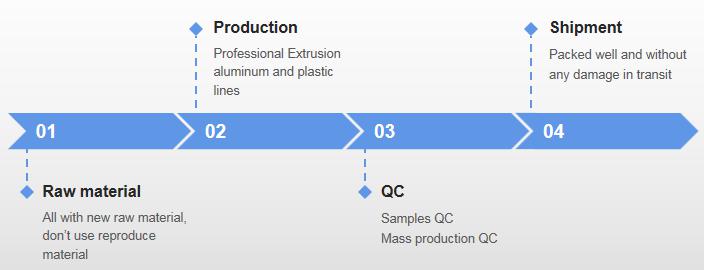

Deliver,Shipping And Serving

FAQ

Q1. How many aluminum extrusion production lines in your factory?
Re: We have 5 of aluminum extrusion production lines.

Q2. How many plastic extrusion production lines in your factory?
Re: We have 20 of plastic extrusion production lines.

Q3. If OEM&ODM are acceptable?
Re: Yes, We have so various types of professional and technical personnel and enough machines that are very willing to accept OEM&ODM cooperation.

Q4. Do you have joining pieces/ how do I join LED aluminium profile?
Re: We don’t do joining pieces for any of our profiles a we find simply butting full lengths together end to end is the bast way to obtain a continuous appearance, barely noticing any join especially when the light is on. Some customers also overlap the diffuser where the aluminium joins to further create a seamless appearance but in reality, once the light is on, any join or gap is barely noticeable.

Q5. What colors is the LED aluminium profile available in?
Re: The led aluminium profile is 6063 silver anodized, as a professional manufacturer, we can offer other color as customer requirement.
