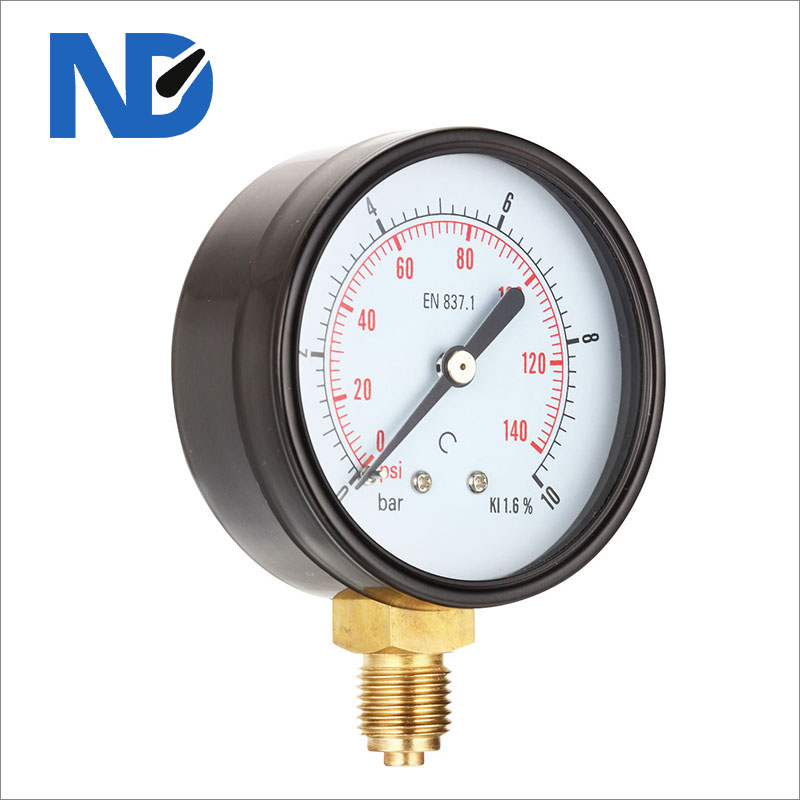

Dry Pressure Gauge
Product DescriptionThe Ningdian® dry pressure gauge covers almost all industrial processes and scientific research fields. Dry pressure gauges made in China can be seen everywhere in the fields of heat pipe network, oil and gas transmission, water supply and gas supply system, vehicle repair an......
Send Inquiry
Product Description
Product Description
The Ningdian® dry pressure gauge covers almost all industrial processes and scientific research fields. Dry pressure gauges made in China can be seen everywhere in the fields of heat pipe network, oil and gas transmission, water supply and gas supply system, vehicle repair and maintenance factories and stores.
Especially in the process of industrial process control and technical measurement, due to the high mechanical strength and convenient production of the elastic sensitive element of the mechanical dry pressure gauge, it is more and more widely used.
The dry pressure gauges can be used on gas and liquid pipe project, which controls the pipe inner pressure in time. We can also desigen the special connection thread and bracket for it to satisfy your installing requirement, the dial artwork also can be booked according to your request. The dial can be single scale, dual scales or tri-scales, the Ningdian® dry pressure gauge with a bottom or back connection.

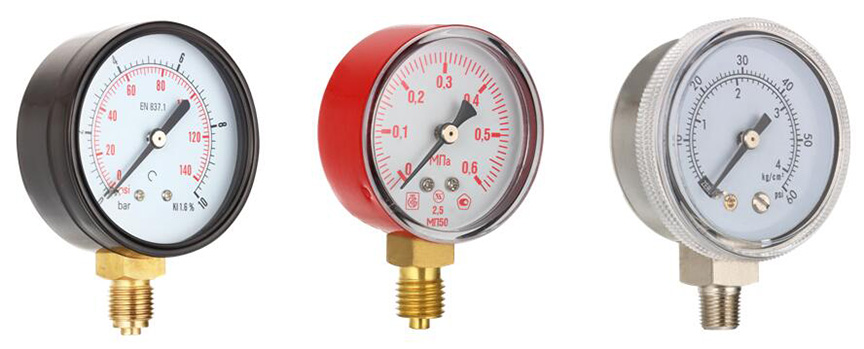

The dry pressure gauge diameter is 40, 50, 63,100,160,250 mm, the accuracy class 1.6 for steel housing and 2.5 for plastic housing. The measurement range for the gauges of these series is from -1 to 400 bar. Scale division ranges from 0.02 to 50 bar.
Paremeter of Dry Pressure Gauge
Size:From 1.5” to 10”
Pressure Range:From 30inHg to 15000psi
Socket:Brass , stainless steel material or chrome plated
Thread:BSP, NPT, BSPT, PT, ZG and other special specification
Bourdon tube:Phosphor bronze or Stainless Steel material
Case :Plasitic, black steel.
Bezel:No bezel , black steel press-on bezel, chrome plated press-on bezel, 304 St Stpress-on bezel or 316 St St press-on bezel
Window:Plasitic press-in , PC lens, glass lens and screw-on PC Lens.
Dial Plate:Single , dual or three scales (Bar, Psi, Kg/c㎡, Kpa, Mpa)
Accuracy:3-2-3%,2.5%,1.6%,1%
Movement:Steel, brass or stainless steel material
Pointer:Aluminium or stainless steel material
U-Clamp:Chromed plated or St St material
Flange:Chromed plated or St St material
Restrictor: Brass or St St material
Over Pressure:130%
